LED Strip Lights and LED Tape — 12V, 24V, IP Ratings, Aluminium Profiles, and Kitchen/Bathroom Applications for UK Electricians

What Are LED Strip Lights?

LED strip lights (also called LED tape, LED ribbon, or flex strips) are flexible PCB boards carrying surface-mounted LEDs at regular intervals. They are sold by the metre or in standard 5m reels, available in a range of voltages (12V, 24V, and 230V), colour temperatures, colour types (white, RGB, RGBW, tunable white), and IP ratings.

For trade electricians and installers, LED strip lighting is one of the fastest-growing product categories — driven by kitchen under-cabinet lighting, bathroom lighting zones, staircase and cornice lighting, retail display lighting, and hospitality fit-outs. Understanding voltage selection, IP ratings, power supply sizing, and aluminium profiles is essential for a professional, reliable installation.

12V vs 24V LED Strip Lights

The voltage of an LED strip affects its maximum run length, efficiency, and the transformer or driver required.

12V LED Strip

• Commonly used in short domestic runs (under 3–4 metres)
• Prone to voltage drop on runs over 5m — LEDs at the far end dim noticeably
• Requires a 12V DC constant-voltage LED driver or transformer
• More common in simple plug-and-play kits and budget installations

24V LED Strip

• Preferred for professional installations and longer runs (up to 5–10m before voltage drop is noticeable)
• Lower current draw per metre — allows thinner supply cable
• Better suited to dimmable installations and smart home integration
• Used in most commercial and hospitality projects
• Requires a 24V DC constant-voltage LED driver

230V LED Strip (Mains Voltage)

• No driver required — connects directly to the mains
• Higher IP ratings available (IP65/IP67 for exterior use)
• Suitable for long continuous runs in commercial settings
• Not commonly used in domestic kitchens or bathrooms — low-voltage (12V/24V) is standard there
• Linkable 230V LED strips (e.g. under-cabinet strips) are popular in domestic kitchen retrofits

IP Ratings for LED Strip Lights

IP (Ingress Protection) ratings determine where a strip light can safely be installed. Choosing the correct IP rating is critical for bathrooms, kitchens, and outdoor locations.

Key rule: In UK bathrooms, BS 7671 requires Zone 0 (inside the bath/shower) to be IPX7 minimum, Zone 1 (above the bath/shower to 2.25m) to be IPX4 minimum, and Zone 2 (600mm outside the bath zone) to be IPX4 minimum. For LED strip in bathroom coves, cornice, and mirror lighting — IP33 minimum for Zone 2, IP65 for Zone 1.

LED Strip Colour Types

• Single white (CCT fixed): Available in warm white (2700–3000K), cool white (4000K), or daylight (6000–6500K). Most common for kitchen and under-cabinet lighting.
• Tunable white (CCT adjustable): Adjustable from warm to cool via a compatible controller — ideal for living areas and hospitality.

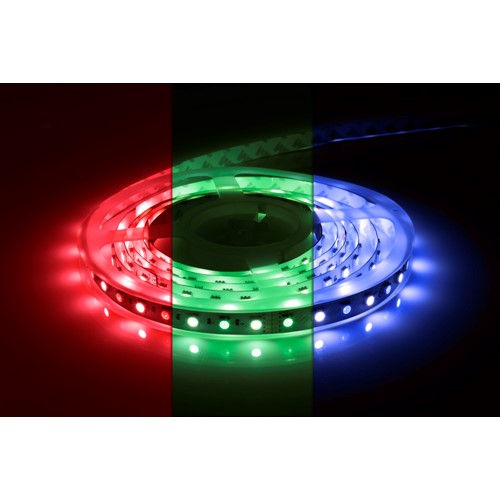

• RGB: Red, Green, Blue LEDs — unlimited colour mixing but no pure white output.
• RGBW: RGB plus a dedicated white LED — provides full colour plus clean white output. Best for installations requiring both colour effects and task lighting.
• RGB+W (high-density): As RGBW but with higher LED density for brighter output. Found in professional-grade strips.

LED Density and Watts per Metre

LED strips are rated in watts per metre (W/m). Higher density means more LEDs per metre, higher brightness, and higher power consumption.

• 4–5 W/m: Low-density, suitable for accent lighting, coves, and cornices
• 9–12 W/m: Mid-density, most common for kitchen and bathroom task lighting
• 14–20 W/m: High-density, used for commercial displays, retail, and high-output downlight replacement

Power supply sizing: Always size the driver to 120–125% of the total strip wattage to avoid overloading. A 5m strip at 11W/m = 55W total — use a 70W or 75W driver minimum.

Cutting and Joining LED Strip

LED strips can be cut at marked cut points (every 50mm–100mm depending on the LED density and driver type). Cutting between cut points will damage the strip and void the warranty.

Joining methods:

• Soldering: Most reliable permanent join — requires a temperature-controlled soldering iron (240–260°C) and appropriate flux-core solder
• Snap connectors / lever connectors: Quick no-solder connection for corners, extensions, and repairs — must be rated for the strip width (8mm, 10mm, or 12mm)
• Corner connectors: Allow 90° turns without cutting — essential for running strips around kitchen cabinet corners

Connector compatibility: Match the connector width to the strip width and IP rating. IP33 strips with silicone coating require connectors specifically rated for waterproof strips.

Aluminium Profiles for LED Strip Lights

Aluminium profiles (also called channels or extrusions) serve two purposes: they provide a clean, professional finish and act as a heat sink to dissipate heat from the LED strip, extending its lifespan.

Profile Types

• Recessed profile: Sits flush with the surface — used in alcoves, stair risers, furniture recesses, and kitchen plinths. Requires a routed channel in the substrate.
• Surface-mount profile: Sits on top of the surface — used for cornice lighting, under-cabinet mounting, and exposed applications. Easiest to install.
• Round profile: Cylindrical cross-section — used for pendants, suspension lighting, and bespoke linear fittings.
• Corner profile: 45° or 90° internal angle — used in cabinet corners, staircase nosings, and architectural recesses.

Diffuser Options

Profiles are available with clear, frosted (opal), or milky white diffusers. Clear diffusers show individual LED hotspots — suitable for accent lighting. Frosted/opal diffusers spread the light evenly — required for task lighting applications where hotspots would be visible (kitchen worktops, bathroom mirrors).

Fitting a Profile

1. Cut the aluminium profile to length with a mitre saw or hacksaw
2. Peel the adhesive backing from the strip and press it firmly into the profile channel
3. Thread the supply lead through the end cap (or use a connector at the entry point)
4. Clip the diffuser into the profile
5. Mount the profile with the integrated fixing slots or adhesive mounting tape

Dimming LED Strip Lights

Most 12V and 24V LED strips support PWM (Pulse Width Modulation) dimming via a compatible inline LED dimmer or smart controller. The controller must be rated for the total wattage of the strip and must match the voltage.

• Trailing-edge dimmer (TRIAC): For mains-voltage 230V linkable strips — standard dimmer switch (ensure it is LED-rated)
• PWM dimmer: For low-voltage 12V/24V strips — inline controller between driver and strip
• Smart controller (Bluetooth/WiFi/Zigbee): Enables smartphone, voice assistant (Alexa/Google Home), and home automation control — popular for RGBW strips in living spaces
• DALI or 0–10V dimming: For commercial installations with building management systems

Linkable 230V LED Under-Cabinet Strips

For domestic kitchen retrofits, linkable 230V LED under-cabinet strips are the most popular choice. They plug into a standard 13A socket (typically a spur socket inside the cabinet), eliminate the need for a separate driver, and can be daisy-chained using connecting leads.

Key installation note: Under-cabinet strip lights must be supplied from a dedicated spur socket inside the cabinet — not from the kitchen ring main via a plug under the cabinet where the cable could be trapped. If the cabinet does not have a spur socket, a registered Part P electrician (or the homeowner in Scotland) must install one.

Bathroom LED Strip Installations

LED strips are widely used for bathroom mirror backlighting, cornice cove lighting, and shower niche lighting. Comply with BS 7671 zone requirements:

• Over-mirror strips: Typically Zone 2 or outside zones — IP20 acceptable if positioned correctly, IP33 safer practice
• Shower niche lighting: Zone 1 — IP65 minimum, 12V SELV (Safety Extra Low Voltage) mandatory
• Cornice/cove lighting: Check distance from bath/shower zone boundary — IP33 typically sufficient

All low-voltage LED systems in bathrooms must be SELV (separated or safety extra-low voltage) — maximum 25V AC or 60V DC. Standard 12V and 24V DC LED systems meet this requirement.

Choosing the Right LED Strip

LED Strip Lighting and Part P Compliance

In England and Wales, new electrical installations in dwellings require compliance with Part P of the Building Regulations. This includes:

• Consumer unit or distribution board modifications to supply a new LED lighting circuit
• New spurs or socket outlets installed to supply under-cabinet strips
• Any wiring in bathroom or kitchen zones

Decorative replacement of an existing strip fitting with a like-for-like product (same voltage, same socket) is generally notifiable only if it involves a new circuit. Always advise customers to use a registered electrician (NICEIC, NAPIT, Elecsa) for any new circuit installation.

Common LED Strip Problems

• Voltage drop / dimming at far end: Supply cable too long or driver undersized — feed from both ends or use 24V instead of 12V
• Flickering: Incompatible dimmer or driver — check driver is dimmable and dimmer is LED-rated PWM type
• Overheating / premature failure: Strip not mounted in aluminium profile — the PCB must be heat-sinked to prolong LED life
• Colour inconsistency: Mixing LED strips from different batches or manufacturers — always buy from a single batch for continuous runs
• Connector failures: Poor or loose snap connectors — solder at permanent joints, use lever connectors for maintenance-accessible joints

Summary

LED strip lighting is a versatile, high-demand product category for both domestic and commercial electricians. Key decisions are voltage (24V for professional installations), IP rating (IP33 for kitchens and bathrooms, IP65 for Zone 1 and outdoor), and aluminium profile selection (recessed for flush finishes, surface-mount for retrofits). Always size drivers to 120–125% of strip wattage, mount strips in aluminium profiles for heat management, and comply with BS 7671 zone requirements in bathrooms.
